Demagnetization

  • Extremely efficient automatic adjustment of magnetic field intensity depending on workpiece size
  • Suitable for workpieces up to 50 mm thick
  • For bigger workpieces, we recommend using tunnel demagnetizers
  • Coil protected by aluminium housing
  • During the demagnetization cycle, the workpiece should be moved at low and constant speed through the alternating field of the demagnetizer (recommended speed: 0.05 to 0.2 m/sec.)

Included with purchase:
- ON/OFF switch
- 1.5 meter long cable

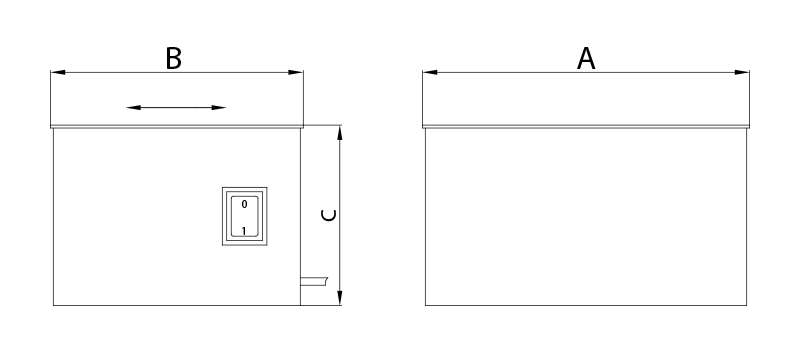

Technical Drawing - Plate Demagnetizer type DM3, DM4, DM5
CODE Weight Kg A B C D
16.01.220 11,0 250 165 75 700VA
16.01.280 18,0 280 266 75 700VA
16.01.400 24,0 400 300 75 700VA
