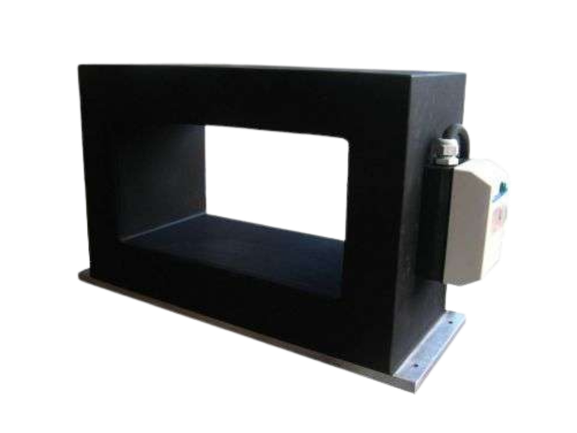

Demagnetization

  • Designed for continuous operation cycle
  • Protection class IP54
  • Coil encapsulated in high performance epoxy resin
  • Extremely stable construction
  • During the demagnetization cycle, the workpiece must be exposed to an alternating magnetic field with decreasing intensity
  • The workpiece should be moved through the tunnel at low and constant speed (approx. 0.2 m/sec.)
  • After demagnetization, the workpiece must exit the tunnel demagnetizer by 40–60 cm (depending on tunnel size) before switching the unit off
  • The indicated magnetic field values refer to peak values

Included with purchase:
- ON/OFF switch, fuses and control LEDs
- 3 meter long cable

Voltage: 230 / 400 VAC

Duty cycle: 100%



Technical Drawing - Tunnel Demagnetizer type DT



CODE Weight Kg A B C D E F G H
16.04.150100 40,0 150 100 320 282 150 358 110 230 V AC
16.04.200600 150,0 200 600 370 790 250 450 150 230 V AC
16.04.260130 48,0 260 130 430 315 165 475 115 230 V AC
16.04.250250 66,0 250 250 420 435 180 470 130 230 V AC
16.04.400200 120,0 400 200 570 385 230 595 150 230 V AC
16.04.400350 142,0 400 350 570 535 230 595 150 230 V AC
16.04.400400 110 400 400 570 570 350 430 270 400 V AC
16.04.550550 125 550 550 720 720 350 580 270 400 V AC
16.04.750550 150 750 550 920 720 350 750 270 400 V AC
16.04.850420 500 850 420 1090 660 340 1100 380 400 V AC
