Demagnetization

  • Designed for continuous operation cycle
  • Protection class IP54
  • Coil encapsulated in high performance epoxy resin
  • Extremely stable construction
  • During the demagnetization cycle, the workpiece must be exposed to an alternating magnetic field with decreasing intensity
  • The workpiece should be moved through the tunnel at low and constant speed (approx. 0.2 m/sec.)
  • After demagnetization, the workpiece must exit the tunnel demagnetizer by 40–60 cm (depending on tunnel size) before switching the unit off
  • The indicated magnetic field values refer to peak values

Included with purchase:
- ON/OFF switch, fuses and control LEDs
- 3 meter long cable

Voltage: 230 / 400 VAC

Duty cycle: 100%

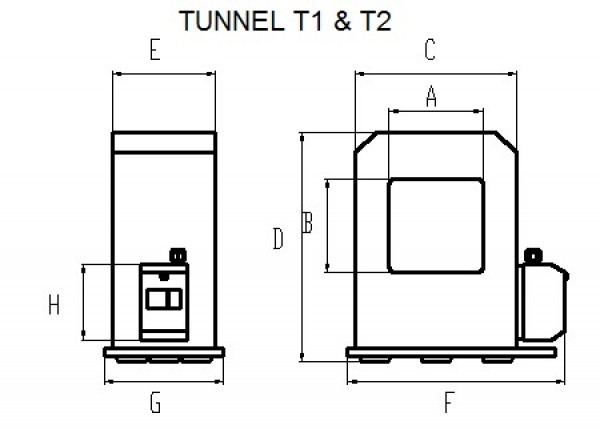

Technical Drawing 1 - Tunnel Demagnetizer type T

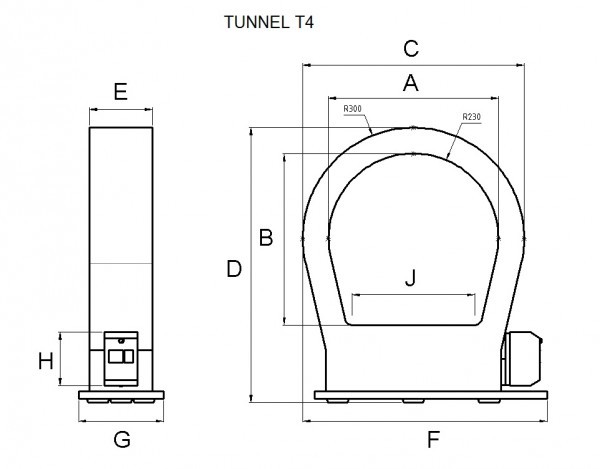

Technical Drawing 2 - Tunnel Demagnetizer type T

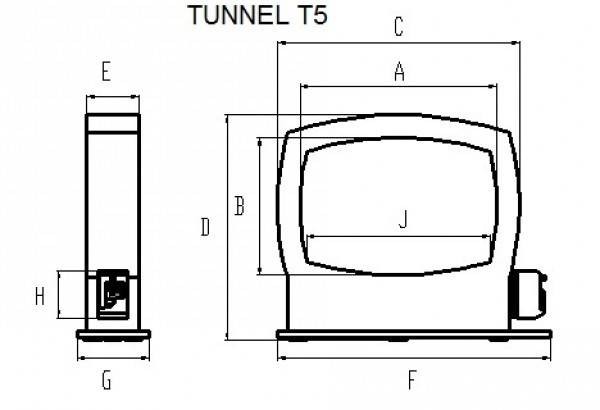

Technical Drawing 3 - Tunnel Demagnetizer type T

CODE Weight Kg A B C D E F G H I
16.04.T1.400 55 180 180 310 432 200 434 230 150 -
16.04.T2.400 70 255 255 380 488 200 470 230 150 -
16.04.T4.400 95 460 465 600 731 170 631 230 150 332
16.04.T5.400 115 600 420 740 676 160 835 220 150 560
16.04.T1.230 55 180 180 310 432 200 434 230 150 -
16.04.T2.230 70 255 255 380 488 200 470 230 150 -
