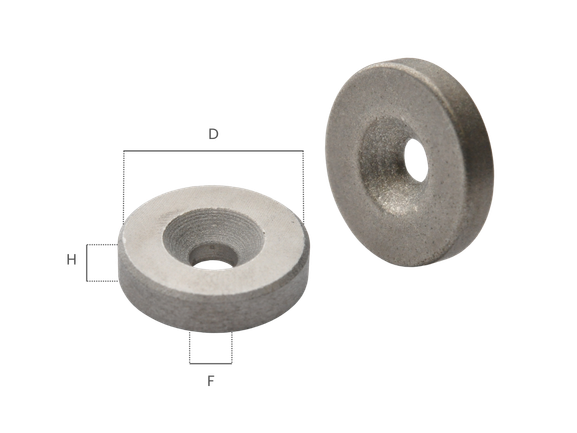

Technical Drawing



SAMARIUM-COBALT discs with countersunk hole ensure high holding force even in compact sizes, allowing installation in confined spaces and avoiding the need for permanent fixing methods.

Available in two polarities, the magnets will attract each other on the countersunk side, making them ideal for coupling or magnetic closures. Upon request, it is possible to supply the entire batch with a single polarity.





All measures are in millimeters (mm).

CODE D H HOLE (F) SCREW STRENGTH KG
SAMC.28XY00.NS01.1043 10 4 3,2 M3 -
SAMC.28XY00.NS01.1533 15 3 3,2 M3 -
SAMC.28XY00.NS01.2033 20 3 3,2 M3 -
SAMC.30XY00.NS01.2033 20 3 3,2 M3 -



It is always recommended to perform specific tests according to your application.
