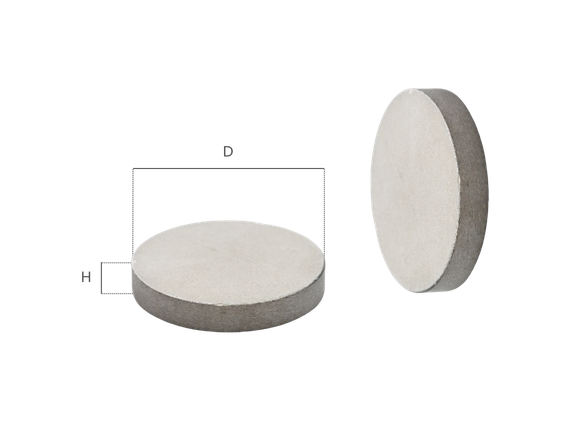

Technical Drawing



Samarium Cobalt (SmCo) disc magnets are available in different diameters and thicknesses to suit a wide range of industrial and technical applications. Their compact disc shape provides high magnetic strength even in limited spaces, while ensuring excellent resistance to high temperatures and corrosion. They are ideal for motors, sensors and precision systems.

Contact us to receive quick feedback on prices, availability and customized products.


All measures are in millimeters (mm).

CODE D H
SAMC.26XY00.23 2 3
SAMC.260000.42 4 2
SAMC.173000.44 4 4
SAMC.260000.510 5 10
SAMC.000000.66 6 6
SAMC.300000.6.58T 6,5 8
SAMC.000000.85 8 5
SAMC.300000.88 8 8
SAMC.170000.93 9 3
SAMC.170000.9.55 9,5 5
SAMC.250000.1010 10 10
SAMC.280000.1110 11 10
SAMC.XGS280.11.55 11,5 5
SAMC.180000.125 12 5
SAMC.000000.154 15 4
SAMC.250000.205 20 5
SAMC.200000.254 25 4
SAMC.300000.304 30 4
SAMC.280000.307 30 7



It is always recommended to perform specific tests according to your application.
