Magnetic Lifters

Permanent lifting magnets

MANUAL CONTROL BHP

Safety factor higher than 3 :1. Low sensibility to airgap.
Robust and compact construction. No remanence. Attractive prices.

APPLICATIONS
Handling of ferrous materials, both flat and round, with raw or machined surface.
The handling becomes quick, safe and reliable.

CONSTRUCTION
The highest energy of NEODYMIUM magnets permit to safely handle ferrous materials.
The robust ON/OFF switch mechanism is equipped with safety device preventing from
unintentional operation. Attractive prices make the new model very economic.

Contact us to get quick feedback on prices, availability and customized products.

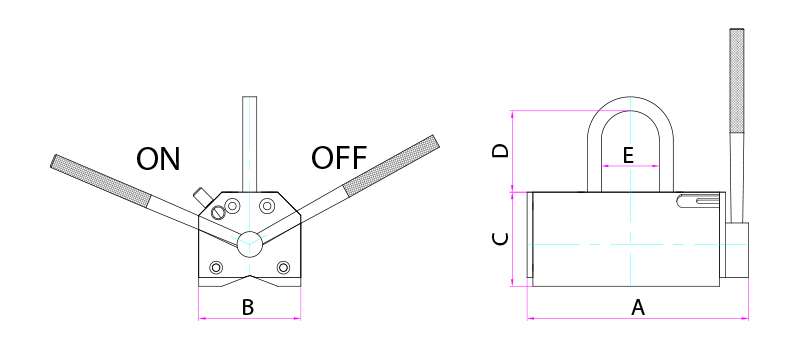

You can view and download the technical drawings of each product by clicking on the respective code, highlighted in blue.

All measures are in millimeters (mm).

CODE	Model	Weight Kg	A	B	C	D	Load Test Kg	Work load for flat surfaces (Kg)	Work load for curved surfaces (Kg)
									Kg	Diameter
SL10.000003.IFND100	IFDN100	4	103	67	70	81	300	100	50	30-120

It is important to consider the following aspects in order to ensure proper operation of the lifter:

Avoid air or material gaps between the lifter and the surface: even tenths of a millimeter will have a negative effect on the effective force developed;
Ensure that the surface is thick enough: as the thickness decreases, there will be a contingent decrease in the exerted force of attraction. The values given in the table are calculated with a thickness of 10mm;
Avoid lifting unbalanced or overhanging loads: it is important to lift a load in a balanced way, to avoid sudden detachments due to unexpected forces or weight shifts;
Consider the orientalization of the product: in the case of vertical positioning of the lift, the effective force that can be developed is much lower. It is advisable to opt for larger lifts.

We recommend that you contact us directly for in-depth technical advice tailored to your application, so that you can select the best product.
