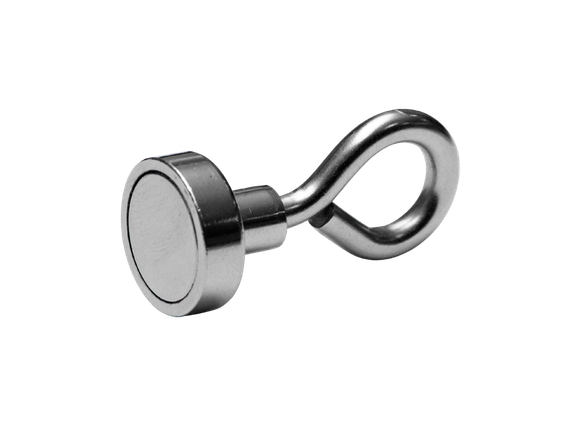

SM44 magnets are modular products consisting of a magnet encapsulated in a steel cup with female threaded stem and screw-in eyelet.

They are available in several sizes to adapt to any type of application, from supporting small loads to heavier ones.

Contact us to quickly receive information about prices, availability and customized products.

The attractive force of the NdFeB magnetic alloy is further enhanced by the steel cup, ensuring high performance even in compact sizes.

This makes these magnets particularly appreciated in various industrial sectors as well as for private use or DIY projects.

All dimensions are expressed in millimetres (mm).

CODE TYPE DIAMETER H FORCE KG
SM44.35NI00.1605 SC35MANI 16 5 8,30
SM44.35NI00.2007 SC35MANI 20 7 16,00
SM44.35NI00.2508 SC35MANI 25 8 25,00



The standard maximum operating temperature is 80 °C.
Upon request we can supply magnets designed to operate at higher temperatures.

Many of these sizes are also available in other variants, with different coatings and magnetization grades.

The force values shown in the tables are the result of dynamometer tests carried out with a 10 mm thick iron plate.
Different conditions during use may affect the actual performance of the magnet.
