  • Electro-permanent circular chuck with concentric poles
  • Uniform, strong and low magnetic field
  • Suitable for simultaneous machining of several workpieces
  • Minimum workpiece thickness: 4 mm
  • Corresponding Control Unit and Remote Control to be ordered separately (see 50.03.BUP.400 / 50.03.BUP.230 and 50.10.T10)

Included with purchase:
- Electric connection at the rear of the chuck
- Slip ring assembly either integrated into the chuck or supplied separately (to be fitted to the machine spindle)

Normal force: 110 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 340 VDC

Magnetic field height: 4 mm

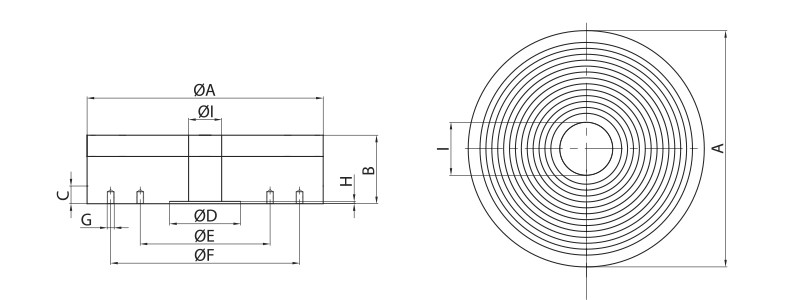

Technical Drawing - Electro-Permanent Circular Magnetic Chuck type EPBC
CODE Weight Kg A B C D E F G H I J
11.16.9.200.340 15,0 200 105 14 100H7 - - 4xM10 5 20 9
11.16.9.300.340 52,0 300 105 16 150H7 - - 4xM12 5 20 9
11.16.9.400.340 89,0 400 105 16 200H7 - - 6xM12 5 40 9
11.16.9.500.340 141,0 500 120 16 250H7 - - 6xM12 5 60 9
11.16.9.600.340 204,0 600 120 18 350H7 - - 6xM12 5 80 9
11.16.9.700.340 278,0 700 120 18 400H7 - - 6xM12 5 80 9
11.16.9.800.340 383,0 800 120 18 450H7 - - 6xM12 5 100 9
11.16.9.1000.340 578,0 1000 130 18 600H7 - - 8xM12 5 150 9
11.16.16.200.340 15,0 200 105 14 100H7 - - 4xM10 5 20 16
11.16.16.300.340 54,0 300 105 16 150H7 - - 4xM12 5 20 16
11.16.16.400.340 89,0 400 105 16 200H7 - - 6xM12 5 40 16
11.16.16.500.340 141,0 500 120 16 250H7 - - 6xM12 5 60 16
11.16.16.600.340 204,0 600 120 18 350H7 - - 6xM12 5 80 16
11.16.16.700.340 278,0 700 120 18 400H7 - - 6xM12 5 80 16
11.16.16.800.340 383,0 800 120 18 450H7 - - 6xM12 5 100 16
11.16.16.1000.340 578,0 1000 130 18 600H7 - - 6xM12 5 150 16
