  • Electro-permanent circular chuck with parallel poles
  • Suitable for ring-shaped workpieces (including thin rings)
  • Suitable for simultaneous machining of several workpieces
  • Minimum workpiece thickness: 4 mm
  • Corresponding Control Unit and Remote Control to be ordered separately (see 50.03.BUP.400 / 50.03.BUP.230 and 50.10.T10)

Included with purchase:
- Electric connection at the rear of the chuck
- Slip ring assembly either integrated into the chuck or supplied separately (to be fitted to the machine spindle)

Parallel pole pitch: 5 mm (brass - steel)

Normal force: 100 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 340 VDC

Magnetic field height: 5 mm

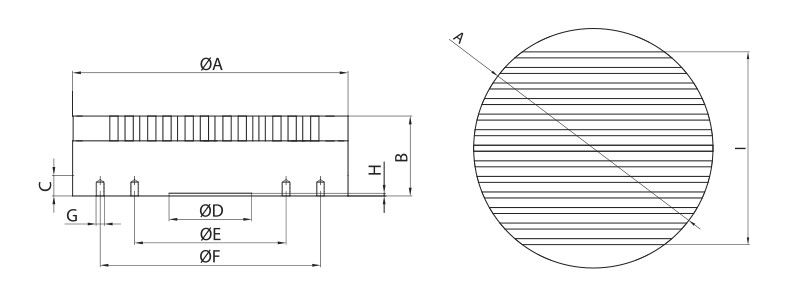

Technical Drawing - Electro-Permanent Circular Magnetic Chuck type EPERU
CODE Weight Kg A B C D E F G H I
11.17.5.150.340 10,5 150 90 14 - - 120 3xM10 4 -
11.17.5.200.340 20,0 200 96 14 - - 140 4xM10 4 -
11.17.5.300.340 49,5 300 106 16 - - 190 4xM12 4 -
11.17.5.400.340 88,0 400 106 16 - - 250 6xM12 5 -
11.17.5.500.340 150,5 500 116 16 - - 320 6xM12 5 -
11.17.5.600.340 216,0 600 116 20 - - 390 6xM12 5 -
11.17.5.700.340 295,0 700 116 20 - - 450 6xM12 5 -
11.17.5.800.340 385,0 800 116 20 - - 500 6xM12 5 -
11.17.5.1000.340 673,0 1000 130 20 - - 600 8xM12 5 -
