Grinding   Turning

  • Electromagnetic radial pole circular chuck with high holding force
  • Space between the poles filled with epoxy resin or with brass (optional)
  • For ring-shaped work pieces
  • Corresponding Control Unit and Remote Control to be ordered separately (see 50.04.BUE.230 / 50.05.BUET.400 and 50.10.T10)

Included with purchase:
- Electric connection at the rear of the chuck
- With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle)

Normal force: 120 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 110 VDC

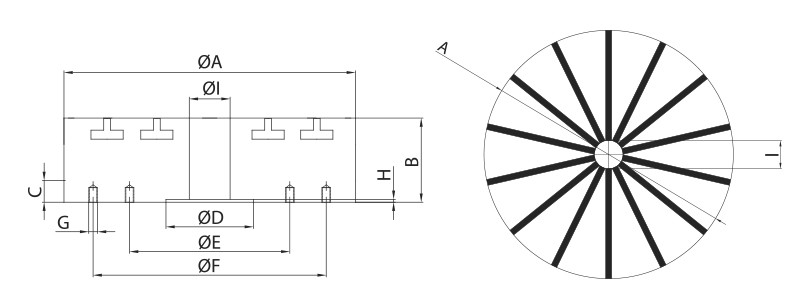

Technical Drawing - Electromagnetic Circular Chuck type ERC
CODE Weight Kg A B C D E F G H I J
11.10.100.6.340 4,0 100 90 12 - - - 3xM8 3 35 6
11.10.150.6.340 9,0 150 90 14 - - - 3xM10 4 35 6
11.10.200.8.340 18,0 200 90 14 - - - 4xM10 3 45 8
11.10.250.8.340 29,0 250 90 16 - - - 4xM12 4 65 8
11.10.300.12.340 42,0 300 90 16 - - - 4xM12 4 85 12
11.10.400.12.340 76,0 400 90 16 - - - 6xM12 5 100 12
11.10.500.16.340 120,0 500 90 16 - - - 6xM12 5 150 16
11.10.600.16.340 195,0 600 100 18 - - - 6xM16 5 180 16
11.10.700.16.340 265,0 700 100 18 - - - 6xM16 5 200 16
11.10.800.24.340 365,0 800 100 18 - - - 6xM16 5 200 24
11.10.1000.24.340 550,0 1000 100 18 - - - 8xM16 5 250 24
