Grinding

  • Electromagnetic circular chuck with parallel poles
  • Suitable for ring-shaped workpieces (including thin rings)
  • Suitable for simultaneous machining of several workpieces
  • Minimum workpiece thickness: 4 mm
  • Corresponding Control Unit and Remote Control to be ordered separately (see 50.04.BUE.230 / 50.05.BUET.400 and 50.10.T10)

Included with purchase:
- Electric connection at the rear of the chuck
- Slip ring assembly either integrated into the chuck or supplied separately (to be fitted to the machine spindle)

Parallel pole pitch: 5 mm (brass - steel)

Normal force: 110 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 110 VDC

Magnetic field height: 5 mm

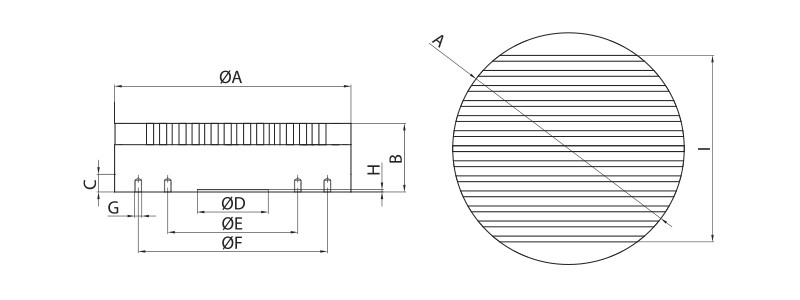

Technical Drawing - Electromagnetic Circular Chuck type ERP
CODE Weight Kg A B C D E F G H I J
11.12.5.150.110 10,5 150 90 14 - - - 3xM10 4 - 54W
11.12.5.200.110 20,0 200 96 14 - - - 4xM10 4 - 85W
11.12.5.300.110 49,5 300 106 16 - - - 4xM12 4 - 144W
11.12.5.400.110 88,0 400 106 16 - - - 6xM12 5 - 195W
11.12.5.500.110 150,5 500 116 16 - - - 6xM12 5 - 282W
11.12.5.600.110 216,0 600 116 18 - - - 6xM12 5 - 391W
11.12.5.700.110 295,0 700 116 18 - - - 6xM12 5 - 512W
11.12.5.800.110 385,0 800 116 18 - - - 6xM16 5 - 648W
11.12.5.1000.110 673,0 1000 130 18 - - - 8xM16 5 - 990W
