Grinding   Turning   Hard turning

  • Radial pole pitch with steel + epoxy resin
  • AlNiCo magnets allow applications at high temperatures
  • Adjustable holding force for positioning of workpieces

Included with purchase:
- 1 Actuating key

Normal force 85 N/cm2

Admissible wear of top plate 5 mm

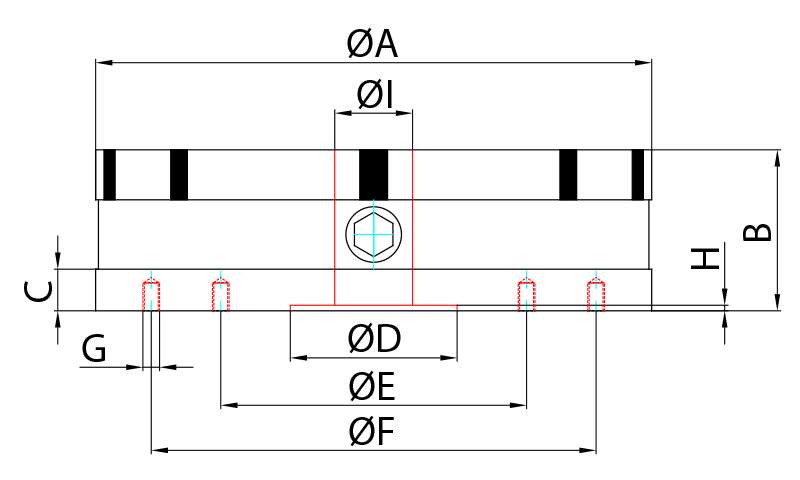

Technical Drawing - Permanent Magnetic Chuck type ERCA2
CODE Weight Kg A B C D E F G H I J
11.01.200 15,0 200 58 17 60 110 180 4xM6 5 30 14
11.01.250 25,0 250 58 17 80 140 220 4xM6 5 50 14
11.01.300 37,0 300 58 22 150 180 260 4xM8 6 58 18
11.01.350 53,0 350 71 22 170 220 300 4xM8 6 58 18
11.01.400 69,0 400 71 22 200 260 340 4xM8 8 58 18
11.01.500 108,0 500 71 22 200 350 450 4xM8 8 75 24
11.01.600 172,0 600 80 22 250 350 450 4xM8 8 90 30
11.01.800 336,0 800 95 47 250 400 700 4xM10 8 120 40
