Grinding   Turning   Hard turning

  • Uniform and very powerful magnetic field
  • Radial pole pitch with steel + epoxy resin
  • Equipped with Neodymium magnets

Included with purchase:
- 1 Actuating key

Normal force 120 N/cm2

Admissible wear of top plate 5 mm

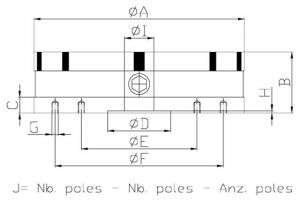

Technical Drawing - Circular Permanent Magnetic Chuck type ERCN
CODE Weight Kg A B C D E F G H I J: Nb of poles
11.01.130N 5 130 57 - 50H7 - 120 M6X12 5 15 10
11.01.150N 7,3 150 57 - 50H7 80 120 M6X12 5 15 10
11.01.200N 13 200 57 - 60H7 110 180 M6X12 5 20 12
11.01.250N 20 250 70 - 80H7 140 220 M6X12 5 30 16
11.01.300N 30 300 73 - 150H7 180 260 M8X16 6 38 16
11.01.350N 49 350 73 - 170H7 220 300 M8X16 6 40 20
