Grinding   EDM

  • Twin magnetic system with NEODYMIUM magnets
  • Parallel pole pitch
  • Concentric rings for easy centering of work pieces

Included with purchase:
1 actuating key

Normal force: 70 N/cm2

Admissible wear of top plate: 8 mm

Magnetic field height: 10 mm

Pole pitch: 11 mm (3 mm brass + 8 mm steel)

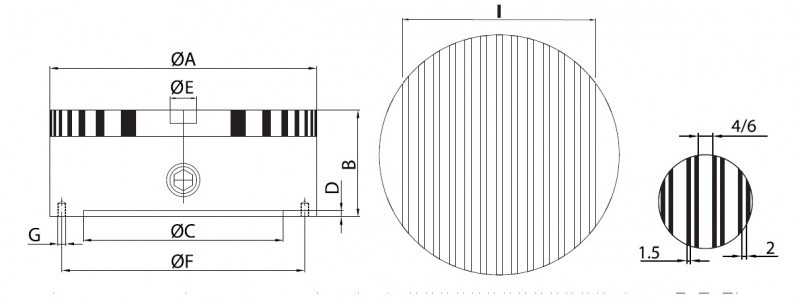

CODE Kg A B C D E F G H
10.04.160 8,0 160 75 125 3 - 142 4XM8 6/1,5+2/1,5
10.04.200 13,0 200 80 150 4,5 - 182 4XM8 6/1,5+2/1,5
