Permanent magnetic chuck with FERRITE magnets

  • Parallel pole pitch with steel + brass
  • Twin magnetic system (magnets inserted into the body and into the top plate)
  • Integrated actuating handle

Included with purchase:
- Long and short side end stops
- Clamps

Pole pitch 13 mm (5 mm brass, 8 mm steel)

Normal force 120 N/cm2

Admissible wear of top plate 8 mm

Magnetic field height 8–10 mm

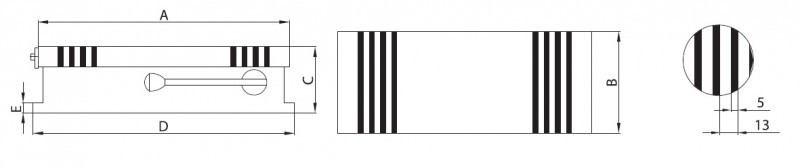

Technical Drawing - Permanent Magnetic Chuck type FM
CODE Weight Kg A B C D E
10.06.250150 20,0 250 150 93 260 20
10.06.350150 27,0 350 150 93 360 20
10.06.450150 34,0 450 150 93 460 20
10.06.400200 40,0 400 200 93 395 20
10.06.500200 50,0 500 200 93 495 20
10.06.600200 62,0 600 200 93 595 20
10.06.500300 90 500 300 93 495 20
10.06.600300 100 600 300 93 595 20
10.06.800300 130 800 300 93 795 20
10.06.1000300 180 1000 300 93 995 20
