  • Magnetic system with high holding force
  • Suitable for alloy steel and hardened steel workpieces
  • Adjustable holding force

Included with purchase:
- 1 actuating key

Parallel pole pitch: 11.2 mm (1.6/2 + 1.6/6 mm)

Normal force: 180 N/cm2

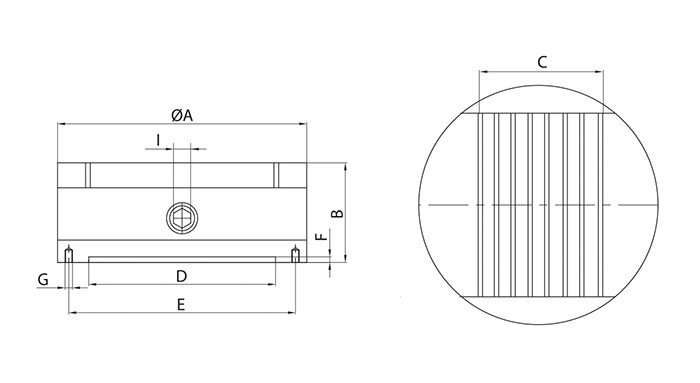

Technical Drawing - Circular Permanent Magnetic Chuck type MPR
CODE Weight Kg A B C D E F G H I
11.07.130R 6,5 130 75 11.2 (1.6+2+1.6+6) 100 112 4 4XM6 78 10
11.07.160R 9,8 160 75 11.2 (1.6+2+1.6+6) 125 140 4 4XM8 100 10
11.07.200R 15,0 200 75 11.2 (1.6+2+1.6+6) 160 180 4 4XM8 128 10
