Magnetic chucks

Permanent magnet magnetic chucks

Type PF2

Grinding EDM Metrology

Permanent magnetic chuck with NEODYMIUM magnets
Parallel fine pole pitch with steel + brass
Reinforced actuating mechanism

Included with purchase:
- 1 Actuating Key
- Long and short side end stops
- Clamps

Max. Temperature of use 80°C.

Pole pitch 2 mm, 0,5 mm of brass, 1,5 mm of steel

Normal force 100 N/cm²

Admissible wear of top plate 7 mm

Magnetic field height 4 mm

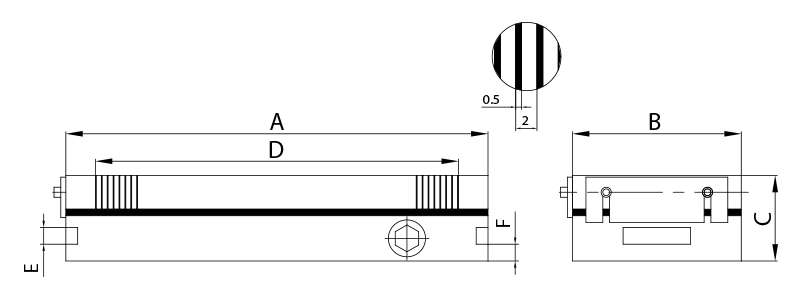

Technical Drawing - Permanent Magnetic Chuck with fine pole pitch type PF2

CODE	Weight Kg	A	B	C	D	E	F
10.01.14070	5,0	140	70	49	111	10	10
10.01.175100	7,0	175	100	49	140	10	10
10.01.200100	8,0	200	100	49	172	10	10
10.01.250100	10,0	250	100	49	172	10	10
10.01.255130	13,0	255	130	49	206	10	10
10.01.150150	9,0	150	150	51	115	10	10
10.01.250150	15,0	250	150	51	206	10	10
10.01.300150	18,0	300	150	51	257	10	10
10.01.300200	24,0	300	200	51	257	10	10
10.01.350150	22,0	350	150	51	305	10	10
10.01.400150	25,0	400	150	51	357	10	10
10.01.450150	28,0	450	150	51	407	10	10

Type PF2-EDM

EDM Metrology

Permanent magnetic chuck with NEODYMIUM magnets
Parallel fine pole pitch with steel + brass
Lower height
Actuating mechanism on the top surface

Included with purchase:
- 1 Actuating key
- Long and short side end stops
- Clamps

Max. Temperature of use 80°C.

Pole pitch 2 mm, 0,5 mm of brass, 1,5 mm of steel

Normal force 100 N/cm²

Admissible wear of top plate 7 mm

Magnetic field height 3 mm

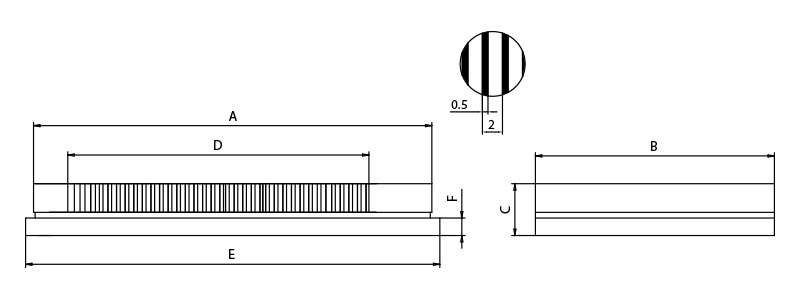

Technical Drawing - Permanent Magnetic Chuck with fine pole pitch type PF2-EDM

CODE	Weight Kg	A	B	C	D	E	F
10.01.14070	5,0	140	70	49	111	10	10
10.01.175100	7,0	175	100	49	140	10	10
10.01.200100	8,0	200	100	49	172	10	10
10.01.250100	10,0	250	100	49	172	10	10
10.01.255130	13,0	255	130	49	206	10	10
10.01.150150	9,0	150	150	51	115	10	10
10.01.250150	15,0	250	150	51	206	10	10
10.01.300150	18,0	300	150	51	257	10	10
10.01.300200	24,0	300	200	51	257	10	10
10.01.350150	22,0	350	150	51	305	10	10
10.01.400150	25,0	400	150	51	357	10	10
10.01.450150	28,0	450	150	51	407	10	10
