Grinding

  • Multicoil electromagnetic system
  • Uniform and strong magnetic field over the entire surface
  • Matching Control Unit and Remote Control to be ordered separately (see 50.04.BUE.230 / 50.05.T.BUET.400 and 50.10.T10)

Included with purchase:
- 3, 6 or 10 meter cable (length to be selected) on the short side
- Long and short side end stops
- Clamps

Pole pitch: 5 mm (1 mm brass, 4 mm steel)

Nominal force: 125 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 110 VDC

Magnetic field height: 8 mm

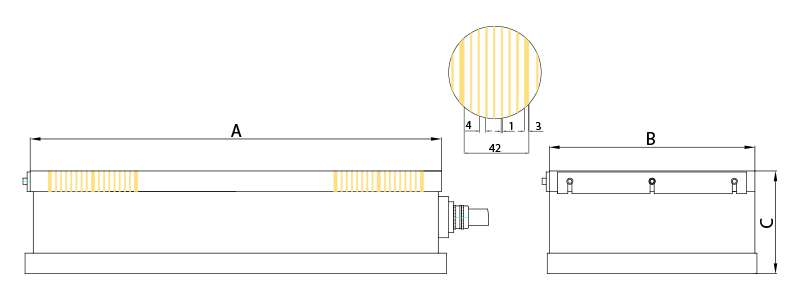

Technical Drawing - Electromagnetic Chuck type BJP
CODE Weight Kg A B C D: Power
10.21.350150 25,0 350 150 80 75w
10.21.400200 51,0 400 200 98 115w
10.21.450200 58,0 450 200 98 125w
10.21.500250 80,0 500 250 98 156w
10.21.600200 77,0 600 200 98 160w
10.21.600250 96,0 600 250 98 187w
10.21.600300 115,0 600 300 98 220w
10.21.600350 134,0 600 350 98 242w
10.21.600400 153,0 600 400 98 270w
10.21.650220 91,0 650 220 98 183w
10.21.800150 85,0 800 150 100 198w
10.21.800250 130,0 800 250 100 244w
10.21.800300 157,0 800 300 100 280w
10.21.800350 183,0 800 350 100 324w
10.21.800400 209,0 800 400 100 363w
10.21.900150 92,0 900 150 100 206w
10.21.900300 176,0 900 300 100 312w
10.21.1000150 101,0 1000 150 100 215w
10.21.1000300 201,0 1000 300 100 347w
10.21.1000400 296,0 1000 400 100 444w
