Grinding   EDM

  • Multicoil electro-permanent system
  • Parallel small pole pitch across the entire chuck width
  • Uniform and strong magnetic field over the entire surface
  • Matching Control Unit and Remote Control to be ordered separately (see 50.01.BUR.230 / 50.01.BUR.400 and 50.10.T10)

Included with purchase:
- 3, 6 or 10 meter cable (length to be selected) on the short side
- Long and short side end stops
- Clamps

Pole pitch: 5 mm (1 mm brass, 4 mm steel)

Nominal force: 110 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 340 VDC

Magnetic field height: 5 mm

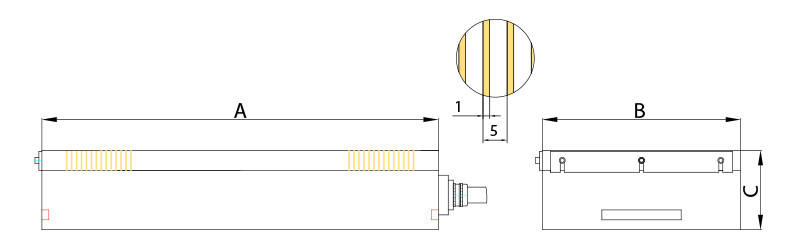

Technical Drawing - Electro-Permanent Magnetic Chuck type EPEFINE2
CODE Weight Kg A B C
10.25.5.25513020,025513068
10.25.5.30015027,030015068
10.25.5.30020034,050020068
10.25.5.35015031,035015068
10.25.5.40015034,040015068
10.25.5.40020044,040020068
10.25.5.40030064,040030068
10.25.5.45015038,045015068
10.25.5.45020049,045020068
10.25.5.50020054,050020068
10.25.5.50025066,050025068
10.25.5.50030078,050030068
10.25.5.60020065,060020068
10.25.5.60025080,060025068
10.25.5.60030095,060030068
10.25.5.600400124,060040068
10.25.5.700300109,070030068
10.25.5.700400143,070040068
10.25.5.800300124,080030068
10.25.5.800400162,080040068
10.25.5.80050020080050068
10.25.5.80060023880060068
10.25.5.1000300204100030089
10.25.5.1000400267100040089
10.25.5.1000500332100050089
10.25.5.1200400321120040089
10.25.5.1200500399120050089
10.25.5.1200600476120060089
10.25.5.1500500498150050089
10.25.5.1500600594150060089
