  • Electro-permanent system
  • Parallel transversal pole pitch across the entire chuck width
  • Uniform and strong magnetic field
  • Extremely stable construction
  • Matching Control Unit and Remote Control to be ordered separately (see 50.04.BUE.230 / 50.05.T.BUET.400 and 50.10.T10)

Included with purchase:
- 3, 6 or 10 meter cable (length to be selected) on the short side
- Long and short side end stops
- Clamps

Pole pitch: 13 / 18 / 25 mm

Nominal force: 110 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 340 VDC

Magnetic field height: 5 / 8 / 10 mm

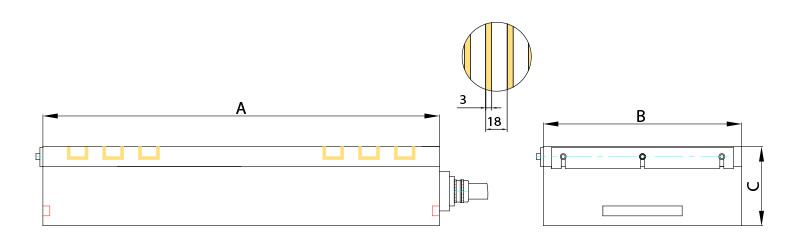

Technical Drawing - Electro-Permanent Magnetic Chuck type EPICA
CODE Weight Kg A B C D: Power/Ampere
10.23.300150 25,0 300 150 77 30A
10.23.450150 30,0 450 150 77 30A
10.23.400200 40,0 400 200 77 30A
10.23.500200 50,0 500 200 77 30A
10.23.600200 66,0 600 200 77 30A
10.23.600250 75,0 600 250 77 30A
10.23.800250 100,0 800 250 77 30A
10.23.1000250 165,0 1000 250 77 30A
10.23.500300 75,0 500 300 77 30A
10.23.600300 90,0 600 300 77 30A
10.23.700300 110,0 700 300 77 30A
10.23.900300 176,0 900 300 77 30A
10.23.1000300 190,0 1000 300 77 30A
10.23.1200300 270,0 1200 300 77 30A
10.23.1500300 311,0 1500 300 77 30A
10.23.600400 120,0 600 400 80 30A
10.23.800400 80,0 800 400 80 30A
10.23.1000400 215,0 1000 400 80 30A
10.23.1200400 255,0 1200 400 80 30A
10.23.800500 195,0 800 500 90 30A
10.23.1000500 270,0 1000 500 90 30A
10.23.1500500 450,0 1500 500 90 30A
