Grinding

  • Pole pitch with steel + epoxy resin (EPTZ)
  • Uniform and strong magnetic field
  • Corresponding Control Unit and Remote Control to be ordered separately (see 50.01.BUR.230 / 50.01.BUR.400 and 50.10.T10)

Included with purchase:
- 3, 6 or 10 meter cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps

Pole pitch: 5 / 4 / 5 / 7

Nominal force: 110 N/cm2

Admissible wear of top plate: 8 mm

Voltage: 340 VDC

Magnetic field height: 5 mm

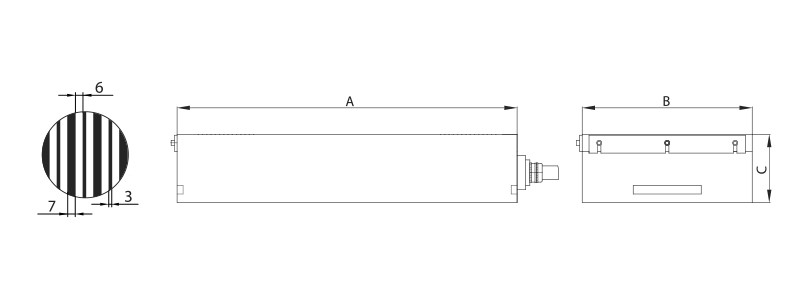

Technical Drawing - Electro-Permanent Magnetic Chuck type POWERFINE
CODE Weight Kg A B C
10.26.11.700300.340 140 700 300 91
10.26.11.700400.340 190 700 400 91
10.26.11.700500.340 235 700 500 91
10.26.11.800300.340 159 800 300 91
10.26.11.800400.340 217 800 400 91
10.26.11.800500.340 268 800 500 91
10.26.11.900300.340 178 900 300 91
10.26.11.900400.340 237 900 400 91
10.26.11.900450.340 266 900 450 91
10.26.11.900500.340 295 900 500 91
10.26.11.1000300.340 197 1000 300 91
10.26.11.1000350.340 230 1000 350 91
10.26.11.1000400.340 271 1000 400 91
10.26.11.1000500.340 334 1000 500 91
10.26.11.1200300.340 236 1200 300 91
10.26.11.1200400.340 313 1200 400 91
10.26.11.1200500.340 391 1200 500 91
10.26.11.1500500.340 486 1500 500 91
10.26.11.2000600.340 773 2000 600 91
