Milling   Drilling   Contouring

  • Top plate made of steel + epoxy resin
  • Double magnet system with extremely high holding force
  • Sturdy construction suitable for heavy machining
  • Ideal for milling large workpieces and slabs
  • Corresponding Control Unit and Remote Control to be ordered separately (see 50.03.BFR.400 and 50.10.T10)

Included with purchase:
- 3, 6 or 10 meter cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps

Pole pitch: 37 mm

Nominal force: 165 N/cm2

Admissible wear of top plate: 5 mm

Voltage: 340 VDC

Magnetic field height: 12 mm

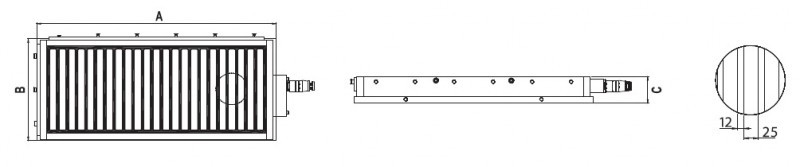

Technical Drawing - Electro-Permanent Magnetic Chuck type 25B
CODE Weight Kg A B C D: Nb poles
10.32.25.395300 61 395 300 70 9
10.32.25.395400 81 395 400 70 9
10.32.25.469300 72 469 300 70 9
10.32.25.469400 95 469 400 70 11
10.32.25.543300 83 543 300 70 13
10.32.25.543400 110 543 400 70 13
10.32.25.617300 94 617 300 70 15
10.32.25.617400 124 617 400 70 15
10.32.25.691300 105 691 300 70 17
10.32.25.691400 139 691 300 70 17
10.32.25.765300 116 765 300 70 19
10.32.25.765400 153 765 400 70 19
10.32.25.839300 126 839 300 70 21
10.32.25.839400 168 839 400 70 21
10.32.25.839500 210 839 500 70 21
10.32.25.987300 148 987 300 70 25
10.32.25.987400 197 987 400 70 25
10.32.25.987500 197 987 500 70 25
10.32.25.987600 295 987 600 70 25
10.32.25.987800 392 987 800 70 25
10.32.25.1209400 241 1209 400 70 31
10.32.25.1209500 300 1209 500 70 31
10.32.25.1209600 360 1209 600 70 31
10.32.25.1357400 270 1357 400 70 35
10.32.25.1357500 337 1357 500 70 35
10.32.25.1357600 404 1357 600 70 35
10.32.25.1505400 299 1505 400 70 39
10.32.25.1505500 373 1505 500 70 39
10.32.25.1505800 596 1505 800 70 39
10.32.25.1653500 410 1653 500 70 43
