Magnetic chucks

Rectangular electromagnetic magnetic chucks

Type TURBOMILL18

Milling Drilling Contouring Machining

Top plate made of Steel+Epoxy resin
Magnetic system with extremely high holding power
Sturdy construction suitable for heavy machinings
Ideal for medium size and thin work pieces
Matching Control Unit and Remote Control to be ordered separately (see 50.01.BUR.230 / 50.01.BUR.400 and 50.10.T10)

Included with purchase:
- 3, 6 or 10 meter cable (length to be selected) on the short side
- Long and short side end stops
- Clamps

Pole pitch: 28 mm - 18 mm of steel - 10 mm Epoxy

Nominal force: 135 N/cm²

Admissible wear of top plate: 5 mm

Voltage: 340 VDC

Magnetic field height: 10 mm

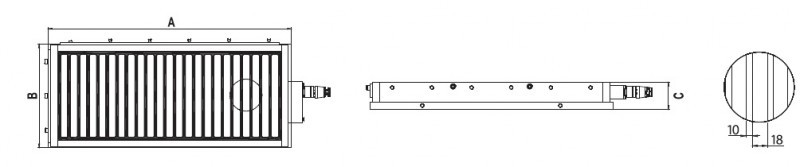

CODE	Weight Kg	A	B	C	D
10.31.18.310300	49,0	310	300	85	9
10.31.18.480300	72,0	480	300	85	15
10.31.18.480400	93,0	480	400	85	15
10.31.18.480500	115,0	480	500	85	15
10.31.18.590300	87,0	590	300	85	19
10.31.18.590400	113,0	590	400	85	19
10.31.18.590600	166,0	590	600	85	19
10.31.18.650600	181,0	650	600	85	21
10.31.18.700300	102,0	700	300	85	23
10.31.18.700400	133,0	700	400	85	23
10.31.18.700500	164,0	700	500	85	23
10.31.18.310300	49,0	310	300	85	9
10.31.18.480300	72,0	480	300	85	15
10.31.18.480400	93,0	480	400	85	15
10.31.18.480500	115,0	480	500	85	15
10.31.18.590300	87,0	590	300	85	19
10.31.18.590400	113,0	590	400	85	19
10.31.18.590600	166,0	590	600	85	19
10.31.18.650600	181,0	650	600	85	21
10.31.18.700300	102,0	700	300	85	23
10.31.18.700400	133,0	700	400	85	23
10.31.18.700500	164,0	700	500	85	23
10.31.18.760300	110,0	760	300	85	25
10.31.18.760400	144,0	760	400	85	25
10.31.18.880400	165,0	880	400	85	29
10.31.18.880500	203,0	880	500	85	29
10.31.18.990300	142,0	990	300	85	33
10.31.18.990400	185,0	990	400	85	33
10.31.18.990500	228,0	990	500	85	33
10.31.18.990600	271,0	990	600	85	33
10.31.18.1200300	170,0	1200	300	85	41
10.31.18.1200400	222,0	1200	400	85	41
10.31.18.1200500	274,0	1200	500	85	41
10.31.18.1200600	326,0	1200	600	85	41
10.31.18.1200800	429,0	1200	800	85	41
10.31.18.1390400	256,0	1390	400	85	47
10.31.18.1390500	316,0	1390	500	85	47
10.31.18.1500300	211,0	1500	300	85	51
10.31.18.1500400	276,0	1500	400	85	51
10.31.18.1500500	340,0	1500	500	85	51
10.31.18.1790800	634,0	1790	800	85	61
