Magnetic system with NEODYMIUM magnets

  • Twin magnetic system (magnets inserted into the body and into the top plate)
  • Brass separations between the magnetic poles

Included with purchase:
- 1 Actuating key
- Long and short side end stops
- Clamps

Pole pitch 15 mm (4 mm brass, 11 mm steel)

Normal force 150 N/cm2

Admissible wear of top plate 6 mm

Magnetic field height 10 mm

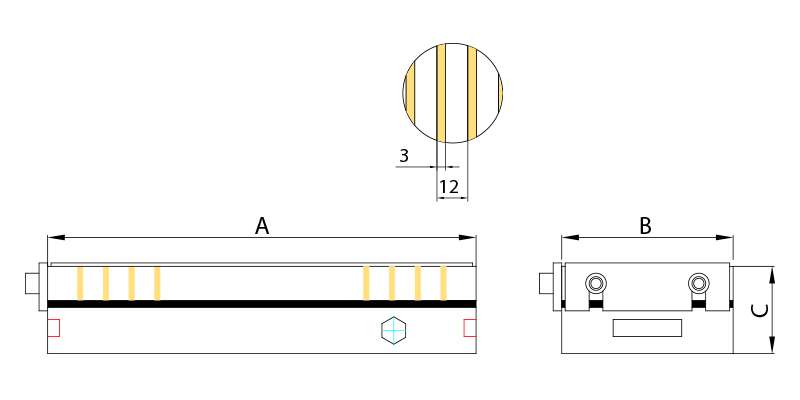

Technical Drawing - Permanent Magnetic Chuck for milling type TF2
CODE Weight Kg A B C
10.03.250150 17,0 250 150 62
10.03.300150 20,0 300 150 62
10.03.350150 23,5 350 150 62
10.03.300200 30,0 300 200 65
10.03.400200 39,0 400 200 65
10.03.500200 48,0 500 200 65
10.03.600200 58,0 600 200 65
10.03.400250 48,5 400 250 68.5
10.03.500250 60,0 500 250 68.5
10.03.400300 58 400 300 68.5
10.03.500300 72,0 500 300 68.5
10.03.600300 87,0 600 300 68.5
