Permanent magnetic chuck with FERRITE magnets

  • Parallel fine pole pitch with steel + brass
  • Integrated actuating handle

Included with purchase:
- Long and short side end stops
- Clamps

Pole pitch 6 mm

Normal force 80 N/cm2

Admissible wear of top plate 8 mm

Magnetic field height 4–5 mm

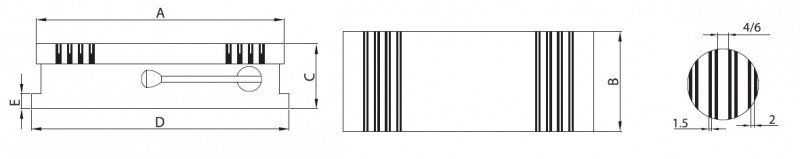

Technical Drawing - Permanent Magnetic Chuck FF
CODE Weight Kg A B C D E
10.04.10065 3,0 100 65 54 119 10
10.04.150100 7,0 150 100 65 165 15
10.04.250150 15 250 150 65 258 15
10.04.350150 21 350 150 65 358 13
10.04.450150 26 450 150 65 458 15
10.04.400200 32 400 200 72 413 15
10.04.500200 40 500 200 72 515 15
10.04.600300 100 600 300 93 595 20
