Magnetic lifters are suitable for lifting bars, round plates, moulds, beams or other pieces of iron.
Their use can simplify loading and unloading operations, thus reducing the execution time.

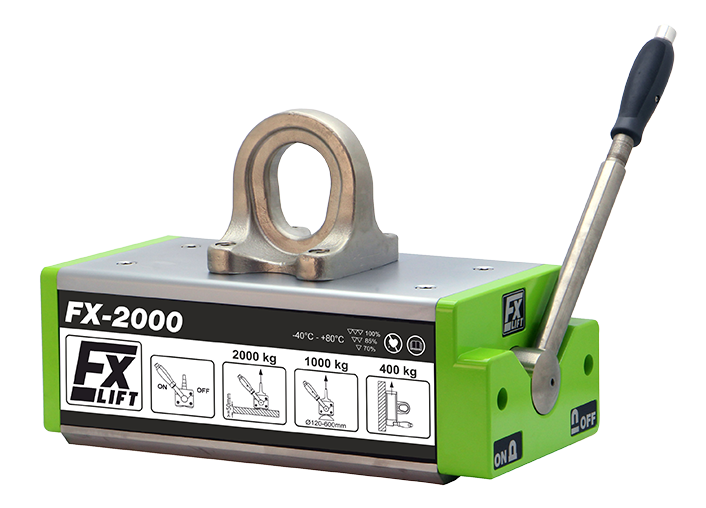

The FX series products have a lever with 90° rotation; this makes the lifter even safer and easier to handle.



Code Type Max load (Kg) Max load from Dimensions Weight Kg
    Plane Circular   L B H H1 R X/Y
SL10.000003.FX150 FX150 150 Ø 50-200 mm 75 kg 8 161 64 60 124 136 30/42 3.6
SL10.000003.FX300 FX300 300 Ø 50-300 mm 150 kg 15 205 87 78 158 190 42/53 8.4
SL10.000003.FX600 FX600 600 Ø 80-400 mm 300 kg 20 288 112 94 189 228 51/62 19
SL10.000003.FX800 FX800 800 Ø 80-400 mm 300 kg 20 348 112 94 189 228 51/62 23
SL10.000003.FX1000 FX1000 1000 Ø 100-450 mm 500 kg 25 361 152 120 240 261 60/76 42
SL10.000003.FX1500 FX1500 1500 Ø 100-450 mm 500 kg 25 361 152 120 240 261 60/76 61
SL10.000003.FX2000 FX2000 2000 Ø 120-600 mm 1000 kg 50 472 228 169 313 409 68/89 115
SL10.000003.FX3000 FX3000 3000 Ø 250-600 mm 1500 kg 50 648 228 169 313 534 68/89 166



All dimensions are in millimetres. Other dimensions and shapes on request.
