For flat & round elements

High holding force. Robust, watertight construction. Safety factor higher than 3:1.

APPLICATIONS
Handling of ferrous materials, both flat and round, with raw or machined surface.
The handling becomes quick, safe and reliable.

CONSTRUCTION
Steel housing. Threaded mounting holes or hook (option).
Power supply tension 210 VDC. Duty cycle: 100%.

Contact us to get quick feedback on prices, availability and customized products.

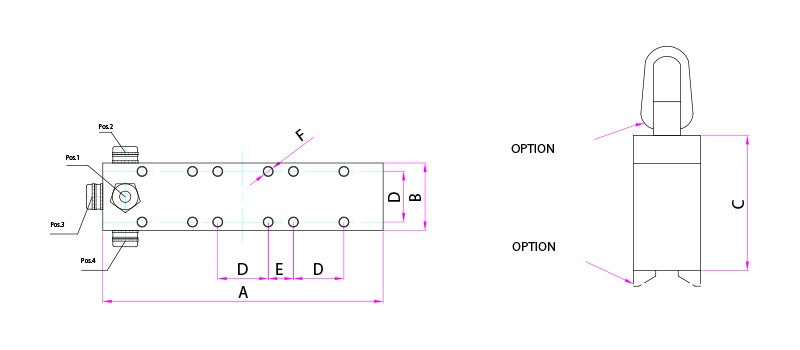

Disegno Tecnico - Two pole electro-permanent lifting magnet BHP

G = force plate/round

Tutte le misure sono indicate in millimetri (mm).

CODE Weight Kg A B C D E F G
20.06.200 10 150 60 143 45 0 4xM8 200/100 daN
20.06.250 12 170 60 143 45 0 4xM8 250/125 daN
20.06.300 14 210 60 143 45 0 4xM8 300/150 daN
20.06.500L 20 300 60 143 45 0 4xM8 500/250 daN
20.06.500 23 210 100 135 75 0 4xM8 500/250 daN
20.06.1000 45 450 100 135 75 57,5 4xM10 1000/500 daN


OPTIONS
Hook. Other dimensions and design.
Other power supply tension.
