The Neodymium discs listed on this page have a standard magnetization degree of N35, with axial magnetization and nickel-coating.

Contact us to get quick feedback on prices, availability and customized products.
You can view and download the technical drawings of each product by clicking on the respective code, highlighted in blue.

All measures are in millimeters (mm).

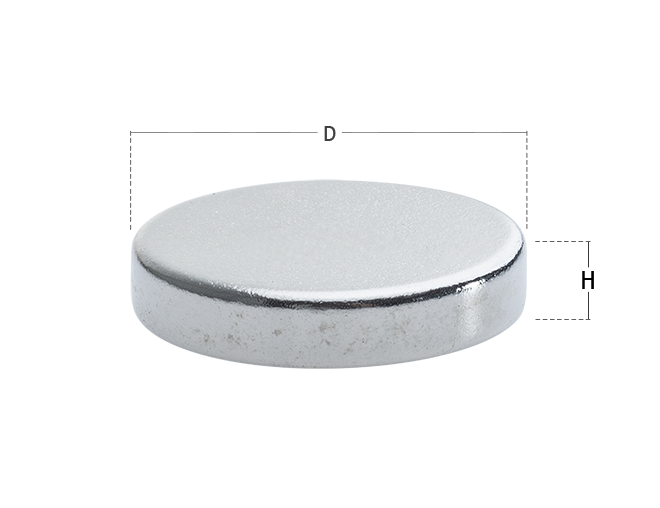

CODE	TYPE	DIAMETER	H	STRENTGH KG
DN01.35NI00.298.5	SC35MANI	29	8,5	13,00
DN01.35NI00.301	SC35MANI	30	1	1,70
DN01.35NI00.302	SC35MANI	30	2	3,38
DN01.35NI00.303	SC35MANI	30	3	5,50
DN01.35NI00.304	SC35MANI	30	4	7,00
DN01.35NI00.305	SC35MANI	30	5	9,87
DN01.35NI00.3010	SC35MANI	30	10	16,00
DN01.35NI00.3015	SC35MANI	30	15	20,50
DN01.35NI00.325	SC35MANI	32	5	15,00
DN01.35NI00.3510	SC35MANI	35	10	18.50
DN01.35NI00.401	SC35MANI	40	1	1,40
DN01.35NI00.402	SC35MANI	40	2	4,62
DN01.35NI00.403	SC35MANI	40	3	7,00
DN01.35NI00.404	SC35MANI	40	4	9,60
DN01.35NI00.405	SC35MANI	40	5	19,00
DN01.35NI00.4010	SC35MANI	40	10	22,01
DN01.35NI00.503	SC35MANI	50	3	8,80
DN01.35NI00.504	SC35MANI	50	4	11,80
DN01.35NI00.505	SC35MANI	50	5	14,00
DN01.35NI00.5010	SC35MANI	50	10	35,00
DN01.35NI00.603	SC35MANI	60	3	10,60
DN01.35NI00.605	SC35MANI	60	5	17,83
DN01.35NI00.6010	SC35MANI	60	10	34,50
DN01.35NI00.6030	SC35MANI	60	30	82,00
DN01.35NI00.7020	SC35MANI	70	20	75,50
DN01.35NI00.7050	SC35MANI	70	50
DN01.35NI00.9010	SC35MANI	90	10	53,77
DN01.35NI00.1005	SC35MANI	100	5	29,94
DN01.35NI00.10010	SC35MANI	100	10	59,98
DN01.35NI00.10025	SC35MANI	100	25
DN01.35NI00.15030	SC35MANI	150	30

The maximum standard operating temperature is 80 °C.
On request, we can supply magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.
